Following on from the previous episode, this week we look at creating camera profiles for Capture One Pro using a product called Lumariver Profile Designer. This is a video again, so the audio player is basically redundant, but I’ll include it anyway.

I’ll leave my notes below, for those that prefer to read, but this really is an episode that requires you to watch the video to not only understand how to create these camera profiles but also to be able to see the benefits when applying the profiles to images in Capture One Pro. Here’s the video.

My Procedure Notes

Here are the notes I made as I prepared for this episode.

The Lumariver manual states that exposure should be around 220 on the white patches, and I have a photo of the Digital ColorChecker SG from last year that is around 221 on the white patches, so that’s perfect! This image was exposed so that the white patches were not blinking, but 1/3 of a stop brighter would have made them blink on the camera’s LCD.

We first use the White Balance picker to set the white balance using one of the mid-gray patches and note that the image is pretty much a perfect 5000K white balance. Nice!

Then we need to go to the Base Characteristics panel, and under ICC Profile select Effects > No color correction, and also set the Curve to Linear Response. We then export the file as a 16 bit TIFF with the ICC Profile set to Embed camera profile, then export a second TIFF with the Curve set to the setting we usually use, so I’ll go with Auto.

Next select New Project from the Edit menu in Lumariver Profile Designer and select “General-purpose ICC profile”. You can use Lumariver to create DNG profiles for use in Lightroom and Adobe Camera Raw, but our objective is to create a camera profile for Capture One Pro, my raw processing software of choice, so we need to select ICC profile.

We then click the Load Image button and load our linear curve TIFF file, and then select the Illuminant that is closest to the light source that we photographed the target in. My custom white balance showed me a reading around 5000K so D50 is smack on. Then select the type of target used, which in this case is the X-Rite ColorChecker SG.

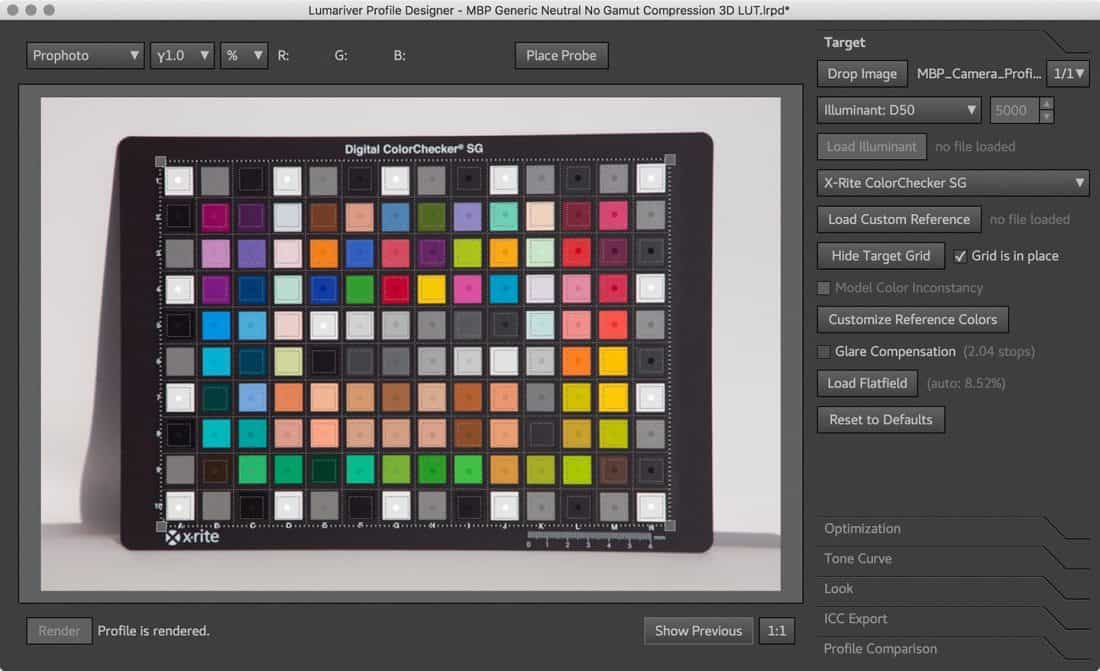

Press the Show Target Grid button and align the corners of the grid that is displayed with the registration marks on the ColorChecker target, then turn on the Grid is in place checkbox. Click on the Tone Curve label towards the bottom of the right sidebar in Lumariver, press the Load Base Curve button and select the second TIFF that we exported with the Auto Curve applied.

The next option, Curve Mode is actually key to making Camera Profiles for Capture One Pro that work without having to brighten your images up again after applying the profile. You need to set the Curve Mode to Add to Base Curve. The default setting of Replace Base Curve gives you a dark profile. On this screen let’s also load the curve from the Capture One Pro load the ICC profile from Capture One.

Under the Look section, I changed the Tone Reproduction Operator to Neutral, as opposed to Skin&Sky, as I don’t really want anything changing. I also changed the Gamut Compression to None. Gamut Compression basically compresses the colors into a smaller working color space, like sRGB or AdobeRGB, but as I keep my images in ProPhotoRGB for as long as possible, and because I know that the camera is working in a much wider color space, I don’t want to limit them falsely with the profiles I’m creating. It’s great to have these options!

Finally, under the ICC Export section, I turned on High-Resolution LUT, because I can, and we’re now ready to press the Render button. Wow! Right there I like what I see very much. We can now export the ICC profile. The default Profile folder that was selected was for me only. So that I can access this profile from other users, should I create any, I changed this to the /Library/ColorSync/Profiles folder, and called my new profile “CanonEOS5DSR-MBP Generic”. I used this naming convention so that Capture One Pro would list my profile alongside the other CanonEOS5DSR profiles.

I also created a second profile with a 3D LUT (Look Up Table) selected under the Optimization section. The manual says that this is really for Reproduction profiles, but being me, I always want to try to use the best possible options, and 3D LUT profiles apply the corrections differently according to the brightness of the color. Although the manual warns that 3D LUT profiles should only be used on images shot under the same conditions, my tests have shown that these work great as a Generic ICC profile for my Canon 5Ds R.

Note that I needed to leave Scale to Match off when creating a 3D LUT profile, as turning this on made my images too bright, unless I used the Linear Response Curve, and then actually the images looked OK, although a little flat.

Then if it was open we need to restart Capture One Pro so that it can find the new ICC profiles, and all we need to do is select the new profile under ICC Profile in the Base Characteristics section, and WOW! Just watch those colors pop! If you want to really bring out the most from your camera, I think we’ve just found the way to do it!

I honestly didn’t think it was possible to improve the image quality of Capture One Pro, so this is a pleasant surprise. I am going to be applying this new profile from now on, and will also go on to create some other profiles for my studio lighting etc. I think a couple of profiles will probably be enough to cover most of the work I do.

Lumariver Profile Designer Cost

Although the process to create a profile is a little more complex with more steps, once you have saved a project, creating future profiles is a piece of cake, and the look of the images with these profiles is great!

All importantly, the price is very reasonable. The Pro version is said to be enough for photographers, at €100, but for a little extra control and options, the Repro version will set you back €200.

This product now has a place in my Capture One Pro workflow. It’s not that I was unhappy with the color of my images, but I do often tweak it, and these profiles get me closer to where I want to be, and that will be a huge time saver. I just wish I’d found this software sooner!

You can download Lumariver Profile Designer here: http://www.lumariver.com

You can try Lumariver without a license, but you can’t save the project or profiles without a license. That’s still useful, as you can see your photographs after rendering them, to ensure at least that you have the process down before you buy.
